Cape George Cutter 34
Description

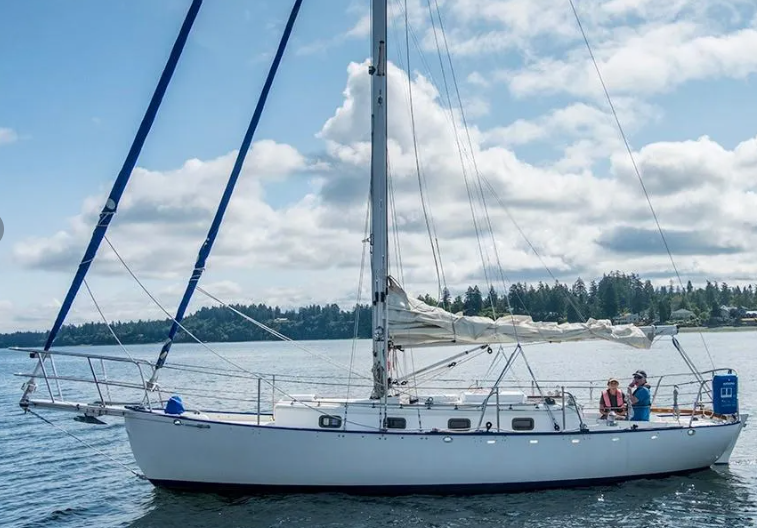

The Cape George Cutter 34 is a 34-foot monohull sailboat designed by John Holland and built by Cape George Marine Works in Port Townsend, Washington. Known for its robust construction and blue water capabilities, it’s a classic heavy-displacement cruiser inspired by William Atkin’s designs, ideal for long-distance voyaging. The Cape George 34 features a long keel/short overhang design, providing a long waterline for high average speeds and excellent self-steering ability, ideal for offshore passages. Its deep cross-section ensures load-carrying capacity and a comfortable motion in heavy seas. The cutter rig (jib, staysail, main) is favored for offshore sailing, offering versatility in adverse conditions, with a sail area/displacement ratio of ~16.5 indicating balanced performance for cruising. The motion comfort ratio (~44.7) is significantly above average, ensuring a smooth ride, while the capsize screening formula (~1.51) suggests suitability for ocean races. The displacement/length ratio (~332) classifies it as a heavy cruiser, prioritizing comfort over speed, with a theoretical hull speed of ~7.3 knots.
The standard boat dimensions
| i | 46.75 ft |
|---|---|
| j | 17.75 ft |
| p | 43.25 ft |
| e | 15.67 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 46.75 ft | 17.75 ft | 43.25 ft | 15.67 ft | - | - |
Blueprints
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 41.75 ft - (12725 mm) |
| Foot | 15.67 ft - (4776 mm) |
| Leech | * 43.9 ft - (13381 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 44.08 ft - (13436 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 326.75 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 42 ft - (12802 mm) |
| Foot | 14.42 ft - (4395 mm) |
| Leech | 33.83 ft - (10311 mm) |
| Length Perpendicular | 10.53 ft - (3210 mm) |
| Area | 221.15 ft² |
| Sail Type | YANKEE |
|---|---|
| Luff | 45 ft - (13716 mm) |
| Foot | 23.17 ft - (7062 mm) |
| Leech | 40.5 ft - (12344 mm) |
| Length Perpendicular | 20.78 ft - (6334 mm) |
| Area | 467.65 ft² |
| Sail Type | STAYSAIL |
|---|---|
| Luff | 31 ft - (9449 mm) |
| Foot | 11.5 ft - (3505 mm) |
| Leech | 27 ft - (8230 mm) |
| Length Perpendicular | 9.89 ft - (3014 mm) |
| Area | 153.23 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
