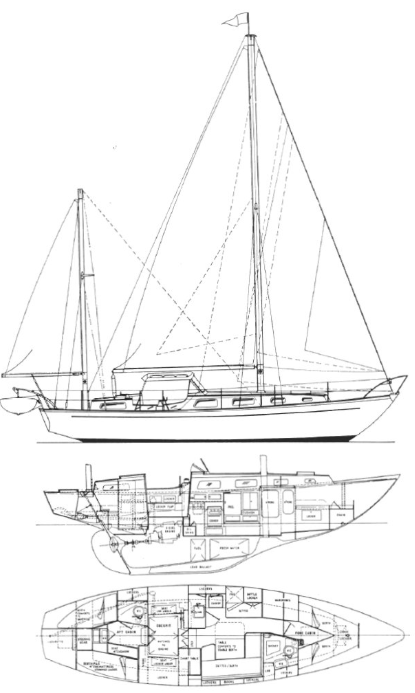

CAMPER NICHOLSON 38
Description
The CAMPER NICHOLSON 38 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 38.000 ft |
The standard boat dimensions
| i | 37.33 ft |
|---|---|
| j | 13.33 ft |
| p | 33.33 ft |
| e | 13.33 ft |
| p2 | 18 ft |
| e2 | 7.66 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 37.33 ft | 13.33 ft | 33.33 ft | 13.33 ft | 18 ft | 7.66 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 37.66 ft - (11479 mm) |
| MidGirth | * 23.99 ft - (7312 mm) |
| Foot | * 23.99 ft - (7312 mm) |
| Perc LP | * 180 |
| Area | 767.94 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 33.33 ft - (10159 mm) |
| Foot | * 13.33 ft - (4063 mm) |
| Leech-AftHdBd | * 35.28 ft - (10753 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 35.46 ft - (10808 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 221.87 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 37.66 ft - (11479 mm) |
| Foot | * 21.83 ft - (6654 mm) |
| Leech | * 35.15 ft - (10714 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 20 ft - (6096 mm) |
| Deck Angle | * 4 ° |
| Area | 376.57 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 31.71 ft - (9665 mm) |
| Foot | * 18.01 ft - (5489 mm) |
| Leech | * 27.03 ft - (8239 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 15.33 ft - (4673 mm) |
| Deck Angle | * 12 ° |
| Area | 243.09 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
