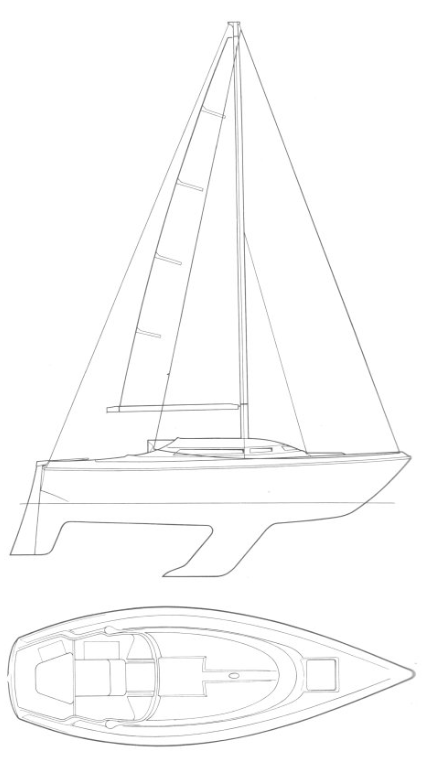

CAMPER NICHOLSON 30
Description
The CAMPER NICHOLSON 30 is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 30.000 ft |
The standard boat dimensions
| i | 38.50 ft |
|---|---|
| j | 11.50 ft |
| p | 33.25 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 38.50 ft | 11.50 ft | 33.25 ft | 9.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 38.17 ft - (11634 mm) |
| MidGirth | * 20.7 ft - (6309 mm) |
| Foot | * 20.7 ft - (6309 mm) |
| Perc LP | * 180 |
| Area | 671.6 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 33.25 ft - (10135 mm) |
| Foot | * 9.5 ft - (2896 mm) |
| Leech-AftHdBd | * 34.16 ft - (10412 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 34.26 ft - (10442 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | 157.77 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 38.17 ft - (11634 mm) |
| Foot | * 18.43 ft - (5617 mm) |
| Leech | * 36.07 ft - (10994 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 17.25 ft - (5258 mm) |
| Deck Angle | * 4 ° |
| Area | 329.19 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 32.14 ft - (9796 mm) |
| Foot | * 15.07 ft - (4593 mm) |
| Leech | * 28.21 ft - (8598 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.23 ft - (4033 mm) |
| Deck Angle | * 12 ° |
| Area | 212.55 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
