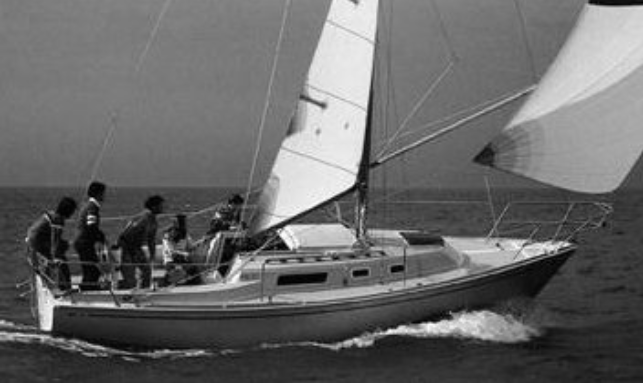

Cal 3-27
Description
The last Cal 27 that was designed was the Mark III (sometimes called the 3-27). The name was later changed to simply "Cal 27". This all new 27-foot Cal was designed in 1982, launched in 1983 and was produced until the Federal Excise Tax forced Cal Yachts out of business in the late 80s. LOA = 26' 8" LWL = 23' 3" Beam = 9' 0" Draft (fin keel) = 5' 6" Ballast (fin keel) = 2000 pounds Displacement Fin = 5200 pounds Engine = Inboard diesel Sail area = 335.5 Sq. Ft I=33', J=11', P=28', E=11' Designer = Bill Lapworth Note: Compared to the previous design, the 2-27, the Mark III was lightened by 1500 pounds, narrowed by 3 inches, the waterline was increased, the sail area reduced. This allows the Mark III to rate better in racing and sail faster. The Mark III is a very quick 27-footer to this day.
The standard boat dimensions
| i | 33 ft |
|---|---|
| j | 11 ft |
| p | 28 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 33 ft | 11 ft | 28 ft | 11 ft | - | - |
Blueprints
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 28 ft - (8534 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech | * 29.44 ft - (8973 mm) |
| Tack Angle | * 87.98 ° |
| Diagonal | * 29.72 ft - (9059 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 158.87 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 27.83 ft - (8483 mm) |
| Foot | * 14.67 ft - (4471 mm) |
| Leech | * 24 ft - (7315 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.65 ft - (3856 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 175.99 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 33.05 ft - (10074 mm) |
| Foot | * 17.85 ft - (5441 mm) |
| Leech | * 31 ft - (9449 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.5 ft - (5029 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 272.68 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 32 ft - (9754 mm) |
| Foot | 17.75 ft - (5410 mm) |
| Leech | 30.25 ft - (9220 mm) |
| Percentage LP | * 149.73 % |
| Length Perpendicular | * 16.47 ft - (5020 mm) |
| Deck Angle | * 3.48 ° |
| Area | * 263.48 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 33.05 ft - (10074 mm) |
| Foot | * 18.15 ft - (5532 mm) |
| Leech | * 30.41 ft - (9269 mm) |
| Perc LP | * 165 % |
| Area | * 450 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 33.05 ft - (10074 mm) |
| MidGirth | * 19.8 ft - (6035 mm) |
| Foot | * 19.8 ft - (6035 mm) |
| Perc LP | * 180 % |
| Area | * 556 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
