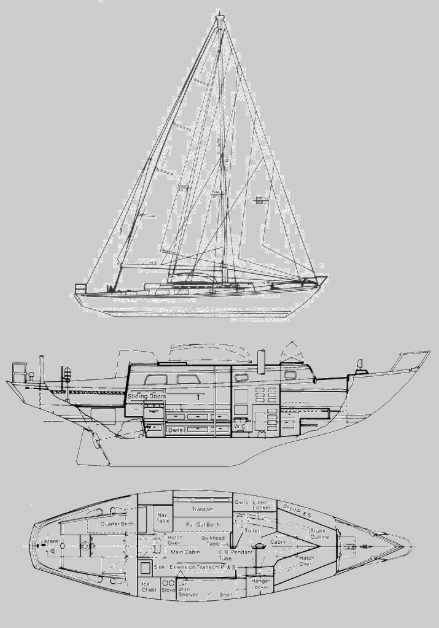

Bristol 40 Cutter
Description
The Bristol 40 Cutter is a sailboat designed by Hood, Ted. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 45.50 ft |
|---|---|
| j | 17.50 ft |
| p | 39.40 ft |
| e | 15.70 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 45.50 ft | 17.50 ft | 39.40 ft | 15.70 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 39.4 ft - (12009 mm) |
| Foot | * 15.7 ft - (4785 mm) |
| Leech-AftHdBd | * 41.62 ft - (12686 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 41.9 ft - (12771 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 317.75 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 40 ft - (12192 mm) |
| Foot | 20 ft - (6096 mm) |
| Leech | 36.5 ft - (11125 mm) |
| Percentage LP | * 103.83 % |
| Length Perpendicular | * 18.17 ft - (5538 mm) |
| Deck Angle | * 3.63 ° |
| Area | * 363.5 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 46 ft - (14021 mm) |
| Foot | 27 ft - (8230 mm) |
| Leech | 42.5 ft - (12954 mm) |
| Percentage LP | * 140.17 % |
| Length Perpendicular | * 24.53 ft - (7477 mm) |
| Deck Angle | * 3.68 ° |
| Area | * 564.1 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 47 ft - (14326 mm) |
| Foot | 28 ft - (8534 mm) |
| Leech | 45 ft - (13716 mm) |
| Perc LP | * 165 |
| Area | * 987 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 26.81 ft - (8172 mm) |
| Foot | * 13.71 ft - (4179 mm) |
| Leech | * 20.83 ft - (6349 mm) |
| Perc LP | * 60 |
| Length Perp | * 10.5 |
| Deck Angle | * 18.99 ° |
| Area | * 140.72 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
