BRISTOL 35
Description
The BRISTOL 35 is a mid-sized cruiser designed by Bristol Yachts. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Bristol Yachts |
|---|---|
| LOA | 34.650 ft |
| LWL | 23.750 ft |
| Beam | 10.000 ft |
| Displacement | 12500 lb |
| Max Draft | 5.000 ft |

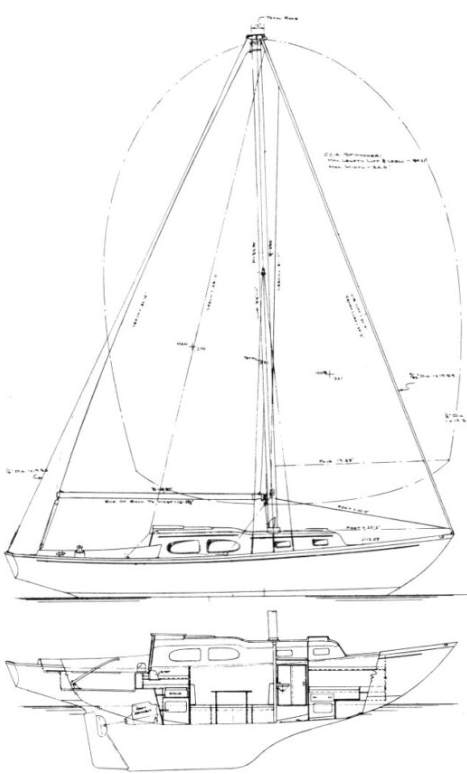

The standard boat dimensions
| i | 39 ft |
|---|---|
| j | 13.55 ft |
| p | 33.90 ft |
| e | 15.90 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39 ft | 13.55 ft | 33.90 ft | 15.90 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|
| Sail Type | STORMJIB |
|---|---|
| Luff | * 22.71 ft - (6922 mm) |
| Foot | * 10.34 ft - (3152 mm) |
| Leech | * 18.23 ft - (5557 mm) |
| Perc LP | * 60 |
| Length Perp | * 8.13 |
| Deck Angle | * 19.02 ° |
| Area | * 92.29 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 33.9 ft - (10333 mm) |
| Foot | * 15.9 ft - (4846 mm) |
| Leech-AftHdBd | * 36.77 ft - (11207 mm) |
| Tack Ang | * 88.01 ° |
| Diag (clew/head) | * 36.94 ft - (11259 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 278 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 33.03 ft - (10068 mm) |
| Foot | * 18.21 ft - (5550 mm) |
| Leech | * 28.28 ft - (8620 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 15.58 ft - (4749 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 257.29 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 39.22 ft - (11954 mm) |
| Foot | * 22.1 ft - (6736 mm) |
| Leech | * 36.67 ft - (11177 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 20.32 ft - (6194 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 398.44 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 39.22 |
| MidGirth | * 24.39 ft - (7434 mm) |
| Foot | * 24.39 ft - (7434 mm) |
| Perc LP | * 180 |
| Area | * 813 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 39.22 ft - (11954 mm) |
| Foot | * 22.36 ft - (6815 mm) |
| Leech | * 36.08 ft - (10997 mm) |
| Perc LP | * 165 |
| Area | * 658 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 39.75 ft - (12116 mm) |
| Foot | 22.83 ft - (6959 mm) |
| Leech | 38.42 ft - (11710 mm) |
| Percentage LP | * 158.15 % |
| Length Perpendicular | * 21.43 ft - (6532 mm) |
| Deck Angle | * 0.99 ° |
| Area | * 425.98 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
