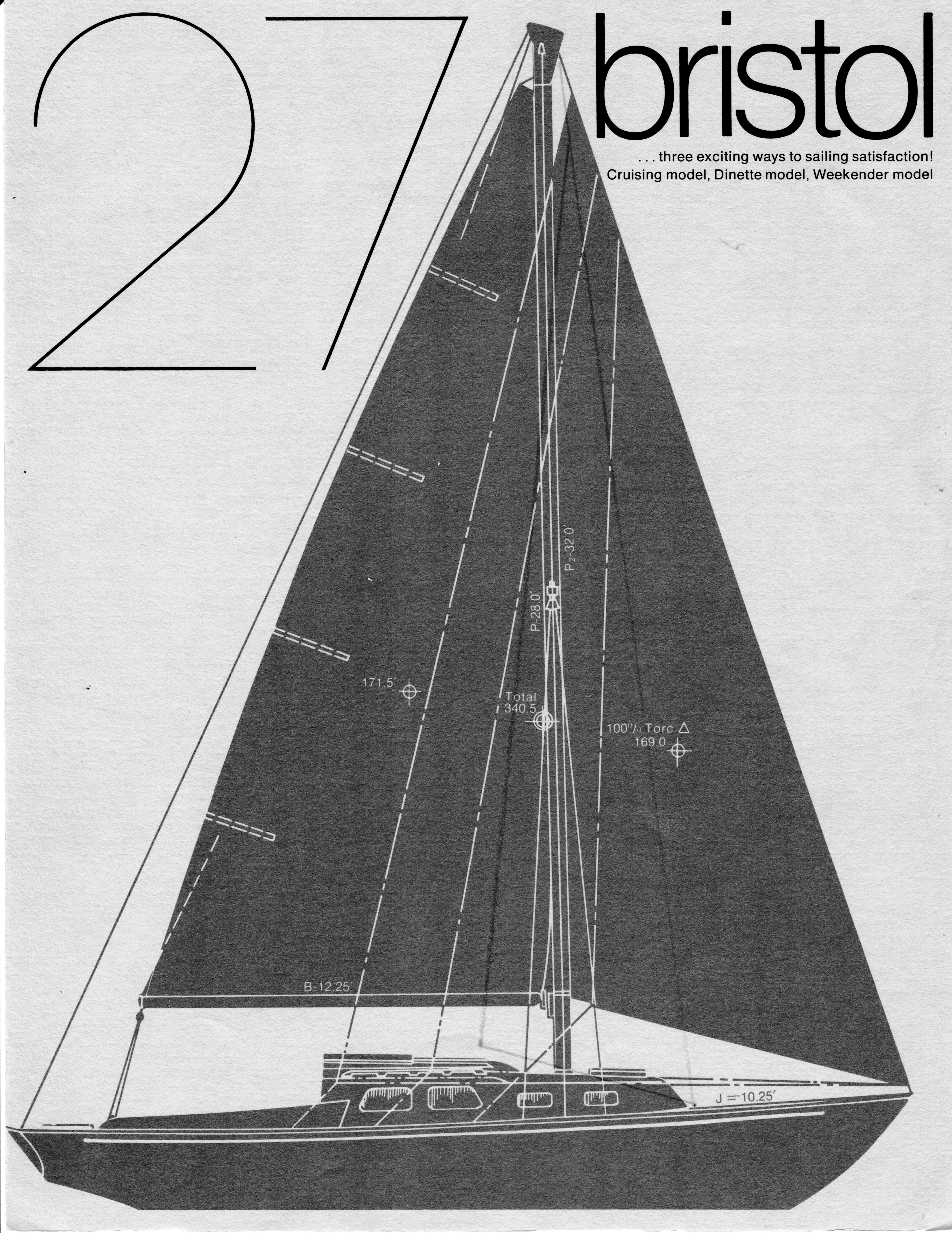

BRISTOL 27
Description
The BRISTOL 27 is a compact cruiser designed by Bristol Yachts. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Bristol Yachts |
|---|---|
| Length | 27.167 ft |
| LOA | 26.000 ft |
| LWL | 21.830 ft |
| Beam | 8.000 ft |
| Displacement | 5700 lb |
| Max Draft | 3.820 ft |
The standard boat dimensions
| i | 32 ft |
|---|---|
| j | 10.25 ft |
| p | 28 ft |
| e | 12.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 32 ft | 10.25 ft | 28 ft | 12.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 26.88 ft - (8193 mm) |
| Foot | * 13.58 ft - (4139 mm) |
| Leech | * 23.34 ft - (7114 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 11.79 ft - (3594 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 158.47 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 31.92 |
| MidGirth | * 18.45 ft - (5624 mm) |
| Foot | * 18.45 ft - (5624 mm) |
| Perc LP | * 180 |
| Area | * 501 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 27 ft - (8230 mm) |
| Foot | 12.75 ft - (3886 mm) |
| Leech | 24 ft - (7315 mm) |
| Percentage LP | * 110.54 % |
| Length Perpendicular | * 11.33 ft - (3453 mm) |
| Deck Angle | * 9.52 ° |
| Area | * 152.98 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 30.75 ft - (9373 mm) |
| Foot | 14.5 ft - (4420 mm) |
| Leech | 28.5 ft - (8687 mm) |
| Percentage LP | * 130.54 % |
| Length Perpendicular | * 13.38 ft - (4078 mm) |
| Deck Angle | * 4.9 ° |
| Area | * 205.73 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 30.75 ft - (9373 mm) |
| Foot | 16.5 ft - (5029 mm) |
| Leech | 29.167 ft - (8890 mm) |
| Percentage LP | * 150.05 % |
| Length Perpendicular | * 15.38 ft - (4688 mm) |
| Deck Angle | * 3.45 ° |
| Area | * 236.51 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 31.92 ft - (9729 mm) |
| Foot | 16.5 ft - (5029 mm) |
| Leech | 30.25 ft - (9220 mm) |
| Percentage LP | * 150.34 % |
| Length Perpendicular | * 15.41 ft - (4697 mm) |
| Deck Angle | * 3.16 ° |
| Area | * 245.98 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 28 ft - (8534 mm) |
| Foot | * 12.25 ft - (3734 mm) |
| Leech-AftHdBd | * 29.96 ft - (9132 mm) |
| Tack Ang | * 88.01 ° |
| Diag (clew/head) | * 30.17 ft - (9196 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 177.17 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 31.92 ft - (9729 mm) |
| Foot | * 16.91 ft - (5154 mm) |
| Leech | * 29.37 ft - (8952 mm) |
| Perc LP | * 165 |
| Area | * 405 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
