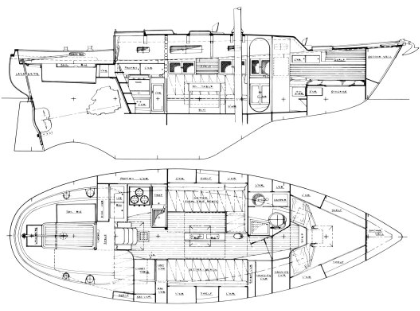

Brewer Union 32' Cutter (Shearwater 32, EO 32)
Description
The Brewer Union 32' Cutter (commonly known as the Union 32, EO 32, East Orient 32, or Shearwater 32) is a Ted Brewer-designed 32-foot (approximately 31'9" LOA) fiberglass cruising cutter from the early 1980s. Ted Brewer (Edward S. Brewer), a prolific Canadian-American naval architect famous for seaworthy designs like the Whitby 42 and his own 12.8/44 series, created this as a compact, heavy-displacement offshore-capable cruiser built in Taiwan by Young Sun (primarily marketed as East Orient or Union Yachts in the U.S.). It's a classic example of Brewer's philosophy: moderate-to-heavy displacement for comfortable motion in a seaway, a full or long keel for tracking and stability, a cutter rig for versatile shorthanded sailing, and solid construction suited to coastal/bluewater use (e.g., liveaboard, extended cruising, or Bahamas gunkholing).
Construction Details
| Designer | Edward S. Brewer |
|---|---|
| Builder | Young Sun (Taiwan) |
| Length | 31.750 ft |
| LOA | 31.750 ft |
| LWL | 27.250 ft |
| Beam | 10.750 ft |
| Displacement | 11500 lb |
| Ballast | 4400 lb |
| Max Draft | 4.750 ft |
| Year Built | 1981 |
The standard boat dimensions
| i | 43.25 ft |
|---|---|
| j | 13.08 ft |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 43.25 ft | 13.08 ft | - | - | - | - | - | - |
Sails
Brewer Union 32' Cutter (Shearwater 32, EO 32) - MAINSAIL
| Edit in Calculator | |
Brewer Union 32' Cutter (Shearwater 32, EO 32) - JIBSAIL
| Luff | * 36.15 ft - (11019 mm) |
|---|---|
| Foot | * 17.17 ft - (5233 mm) |
| Leech | * 31.67 ft - (9653 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 15.04 ft - (4584 mm) |
| Deck Angle | * 12 ° |
| Area | 271.88 ft² |
| Edit in Calculator | |
Brewer Union 32' Cutter (Shearwater 32, EO 32) - GENOA
| Luff | * 42.93 ft - (13085 mm) |
|---|---|
| Foot | * 20.99 ft - (6398 mm) |
| Leech | * 40.53 ft - (12354 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 19.62 ft - (5980 mm) |
| Deck Angle | * 4 ° |
| Area | 421.1 ft² |
| Edit in Calculator | |
Brewer Union 32' Cutter (Shearwater 32, EO 32) - SPINNAKER
| Stays | * 42.93 ft - (13085 mm) |
|---|---|
| MidGirth | * 23.54 ft - (7175 mm) |
| Foot | * 23.54 ft - (7175 mm) |
| Perc LP | * 180 % |
| Area | 858.99 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
