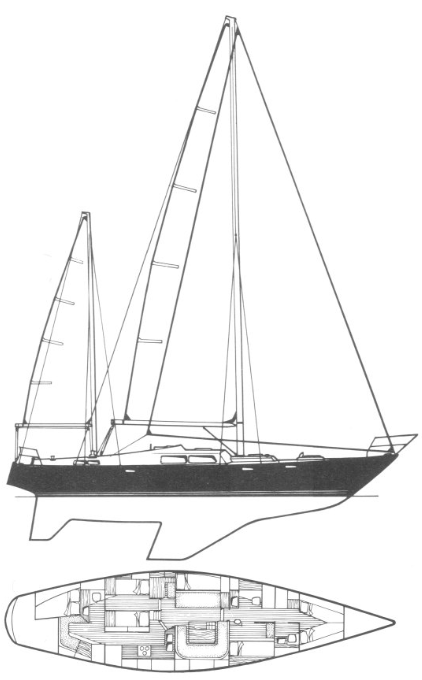

Bowman 57
Description
The BOWMAN 57 is a luxury yacht. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. Built for luxury cruising anywhere in the world with style and comfort.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 57.000 ft |
| LOA | 57.000 ft |
| LWL | 44.580 ft |
| Beam | 14.670 ft |
| Displacement | 16675 lb |
| Max Draft | 7.000 ft |
The standard boat dimensions
| i | 70 ft |
|---|---|
| j | 21.40 ft |
| p | 61.60 ft |
| e | 17.30 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 70 ft | 21.40 ft | 61.60 ft | 17.30 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 61.6 ft - (18776 mm) |
| Foot | * 17.3 ft - (5273 mm) |
| Leech | * 63.26 ft - (19282 mm) |
| Tack Angle | * 87.97 ° |
| Diagonal | * 63.39 ft - (19321 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 532.34 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 58.56 ft - (17849 mm) |
| Foot | * 28.14 ft - (8577 mm) |
| Leech | * 51.22 ft - (15612 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 24.61 ft - (7501 mm) |
| Deck Angle | * 12 ° |
| Area | 720.66 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 69.54 ft - (21196 mm) |
| Foot | * 34.38 ft - (10479 mm) |
| Leech | * 65.61 ft - (19998 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 32.1 ft - (9784 mm) |
| Deck Angle | * 4 ° |
| Area | 1116.04 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 69.54 ft - (21196 mm) |
| MidGirth | * 38.52 ft - (11741 mm) |
| Foot | * 38.52 ft - (11741 mm) |
| Perc LP | * 180 % |
| Area | 2276.88 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
