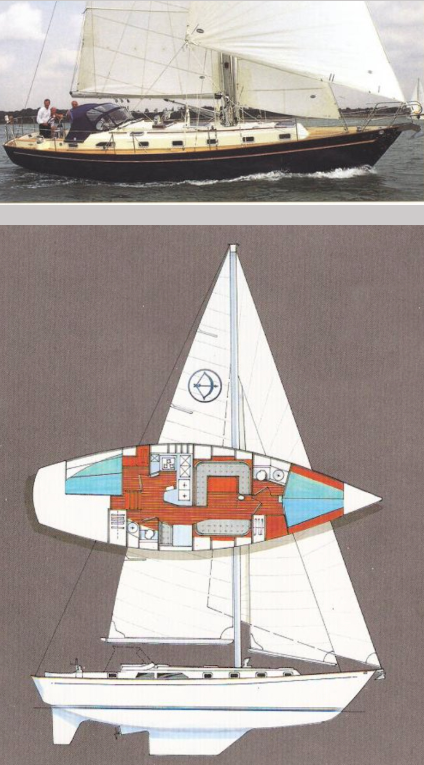

Bowman 40
Description
The Bowman 40 is a performance cruiser. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. A true blue water cruiser capable of comfortable ocean passages.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 39.920 ft |
| LOA | 48.160 ft |
| LWL | 38.250 ft |
| Beam | 14.160 ft |
| Displacement | 34330 lb |
| Max Draft | 6.000 ft |
The standard boat dimensions
| i | 51.41 ft |
|---|---|
| j | 15.81 ft |
| p | 45.51 ft |
| e | 14.76 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 51.41 ft | 15.81 ft | 45.51 ft | 14.76 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 45.5 ft - (13868 mm) |
| Foot | * 14.76 ft - (4499 mm) |
| Leech-AftHdBd | * 47.07 ft - (14347 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 47.34 ft - (14429 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 345.51 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 43.03 ft - (13116 mm) |
| Foot | * 20.81 ft - (6343 mm) |
| Leech | * 37.59 ft - (11457 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 18.18 ft - (5541 mm) |
| Deck Angle | * 12.03 ° |
| Area | * 391.12 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 51.1 ft - (15575 mm) |
| Foot | * 25.42 ft - (7748 mm) |
| Leech | * 48.2 ft - (14691 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 23.72 ft - (7230 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 606.04 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 52 ft - (15850 mm) |
| Foot | 27 ft - (8230 mm) |
| Leech | 49 ft - (14935 mm) |
| Perc LP | * 165 |
| Area | * 1053 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 49.75 ft - (15164 mm) |
| Foot | 20.25 ft - (6172 mm) |
| Leech | 46.5 ft - (14173 mm) |
| Percentage LP | * 119.52 % |
| Length Perpendicular | * 18.9 ft - (5761 mm) |
| Deck Angle | * 3.93 ° |
| Area | * 470.18 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 29.58 ft - (9016 mm) |
| Foot | * 11.74 ft - (3578 mm) |
| Leech | * 24.57 ft - (7489 mm) |
| Perc LP | * 60.01 |
| Length Perp | * 9.49 |
| Deck Angle | * 18.99 ° |
| Area | * 140.31 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
