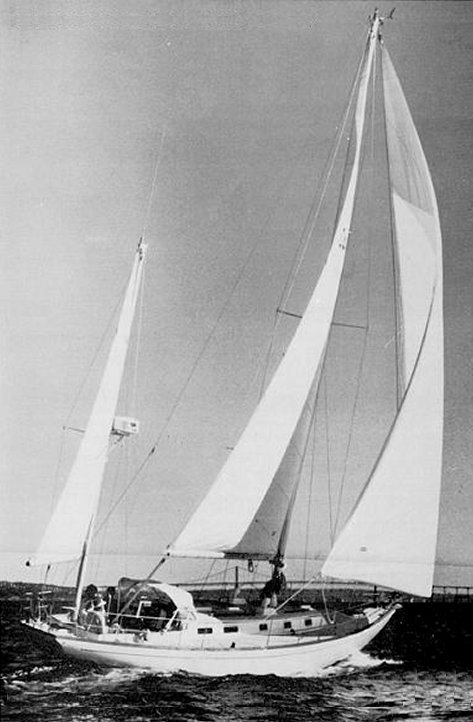

BLOCK ISLAND 40
Description
The BLOCK ISLAND 40 is a performance cruiser designed by William Tripp, Jr. This substantial yacht offers spacious accommodations and excellent seakeeping, with a deep keel providing excellent upwind performance and stability. A true blue water cruiser capable of comfortable ocean passages.
Construction Details
| Designer | William Tripp, Jr |
|---|---|
| Length | 40.000 ft |
| LOA | 40.000 ft |
| LWL | 27.500 ft |
| Beam | 11.750 ft |
| Displacement | 21000 lb |
| Max Draft | 8.420 ft |
| Min Draft | 3.920 ft |
The standard boat dimensions
| i | 44.70 ft |
|---|---|
| j | 15.70 ft |
| p | 38.50 ft |
| e | 17.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 44.70 ft | 15.70 ft | 38.50 ft | 17.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 38.5 ft - (11735 mm) |
| Foot | * 17.5 ft - (5334 mm) |
| Leech-AftHdBd | * 41.53 ft - (12658 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 41.73 ft - (12719 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 346.21 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 37.9 ft - (11552 mm) |
| Foot | * 21.15 ft - (6447 mm) |
| Leech | * 32.39 ft - (9872 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 18.06 ft - (5505 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 342.2 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 45.01 ft - (13719 mm) |
| Foot | * 25.65 ft - (7818 mm) |
| Leech | * 42.06 ft - (12820 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 23.55 ft - (7178 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 530.02 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 45.01 |
| MidGirth | * 28.26 ft - (8614 mm) |
| Foot | * 28.26 ft - (8614 mm) |
| Perc LP | * 180 |
| Area | * 1081 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
