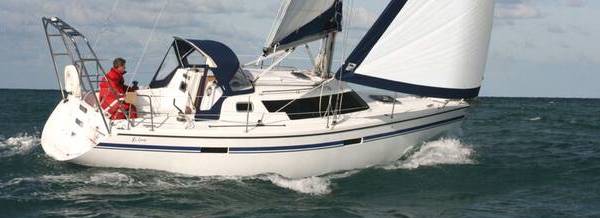

Biloup 36
Description
min 6600kg - max 8200kg, twin keel STIX 6600kg = 37.17/116°4 - STIX 8200kg = 34.13/113°7 Designer : Richard WRIGHTON
Construction Details
| Designer | Unknown |
|---|---|
| Length | 36.024 ft |
| LOA | 25.590 ft |
| LWL | 22.970 ft |
| Beam | 8.370 ft |
| Displacement | 3748 lb |
| Max Draft | 2.950 ft |
The standard boat dimensions
| i | 46.42 ft |
|---|---|
| j | 13.78 ft |
| p | 40.03 ft |
| e | 11.81 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 46.42 ft | 13.78 ft | 40.03 ft | 11.81 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 40.03 ft - (12201 mm) |
| Foot | * 11.81 ft - (3600 mm) |
| Leech-AftHdBd | * 41.1 ft - (12527 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 41.34 ft - (12600 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 243.77 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 38.74 ft - (11808 mm) |
| Foot | * 18.04 ft - (5499 mm) |
| Leech | * 34.04 ft - (10375 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 15.85 ft - (4831 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 307.01 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 46 ft - (14021 mm) |
| Foot | * 22.07 ft - (6727 mm) |
| Leech | * 43.49 ft - (13256 mm) |
| Percentage LP | * 150.01 % |
| Length Perpendicular | * 20.67 ft - (6300 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 475.41 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 46 ft - (14021 mm) |
| Foot | * 22.74 ft - (6931 mm) |
| Leech | * 42.32 ft - (12899 mm) |
| Perc LP | * 165 |
| Area | * 785 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 26.63 ft - (8117 mm) |
| Foot | * 10.16 ft - (3097 mm) |
| Leech | * 22.32 ft - (6803 mm) |
| Perc LP | * 60.02 |
| Length Perp | * 8.27 |
| Deck Angle | * 18.96 ° |
| Area | * 110.14 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
